Impact Hammers | LC-01A | LC-02A | LC-04A | LC-12 |
Sensitivity (pC/N) | 4 | 4 | 4 | 4 |
Max. Shock Force (KN) | 2 | 5 | 60 | 125 |
Head Diameter (mm) | Φ16 | Φ25 | Φ30 | Φ75 |
Length of Handle (mm) | 250 | 280 | 300 | 900 |
Head Weight (g) | 40 | 200 | 300 | 3700 |
Attach Head Weight (g) | - | 120 | 150 | - |

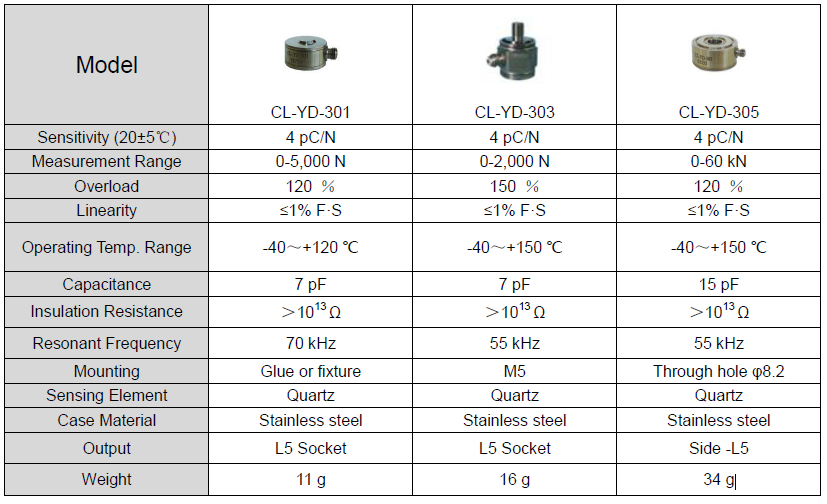

Force Transducer | CL-YD-303 | CL-YD-312 | CL-YD-305 | CL-YD-320 |
